Flexible Solar Panels for Wholesale and OEM Projects

Flexible solar panels are supplied for global distributors, OEM buyers, and off-grid system integrators, with mono and polycrystalline configurations from 10W to 120W for RV, marine, portable, and space-limited solar applications.

With small and medium-sized solar module manufacturing experience, Xufeng provides flexible panel configurations based on required power, voltage, dimensions, bending conditions, cable and connector specifications, supported by cell cutting, welding, lamination, EL testing, and power testing.

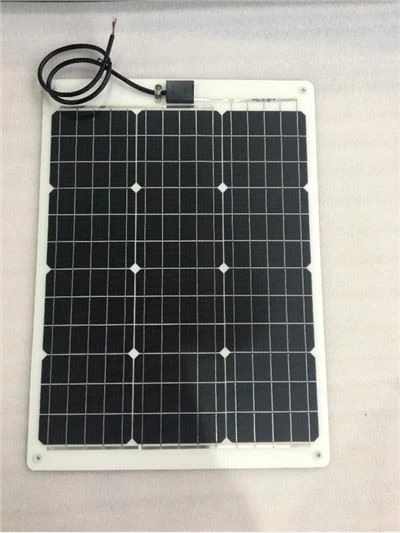

Flexible Solar Cells

10W Polycrystalline Flexible Solar Panel is a compact photovoltaic module for low-power charging and off-grid applications where conventional rigid panels are difficult to install. Its flexible...

Add to Inquiry
Flexible Solar Panel 100w

100W Monocrystalline Flexible Solar Panel is a lightweight photovoltaic module for RVs, boats, yachts, mobile power systems and other off-grid applications. The flexible construction supports...

Add to Inquiry
Solar Panel Golf Cart

The flexible monocrystalline solar panel is developed for golf carts and other mobile applications where roof space, weight and installation flexibility are important. Its thin structure can be...

Add to Inquiry
Solar Panel Flexible 12V

Monocrystalline Flexible Solar Panels are lightweight modules for boats, yachts and curved or space-limited marine surfaces where rigid panels may not fit. The 12V version supports battery-based...

Add to Inquiry

Flexible Solar Panel Types

Flexible Solar Panel Type	Cell / Construction	Typical Product Range	Suitable for
Monocrystalline Flexible Panels	Monocrystalline cells with a flexible module structure	30W, 50W, 80W, 100W, 120W	Projects requiring compact solar modules with specified voltage and power output
Polycrystalline Flexible Panels	Polycrystalline cells with a flexible module structure	Available according to project requirements	Projects specifying polycrystalline cell technology
Semi-Flexible Solar Panels	Flexible solar cells with a more structured panel construction	50W/12V listed model	Curved or slightly uneven mounting surfaces where limited flexibility is sufficient
Flexible Solar Cells	Flexible cells supplied separately for module development	10W/18V-class listed product	OEM projects requiring customized lightweight solar modules or specific cell assemblies

How to Select a Flexible Solar Panel for Your Project

For procurement, the first checks should be the required output, operating voltage, available installation area and panel construction.

Start With Rated Power

The listed products range from 10W to 120W. Select the required wattage based on the power demand and available installation area rather than choosing a model only by its nominal voltage.

Check Vmp and Imp

Electrical values differ between models. For example, the listed 80W model has Vmp 19.08V and Imp 4.19A, while the 100W model has Vmp 19.08V and Imp 8.91A.

Check System Voltage

The product list contains models identified as 12V, 18V and 20V configurations. Buyers should match the panel's actual electrical specification with the charge controller and battery system.

Check Bending Requirement

Confirm the required bending angle or surface curvature before selecting a model. Flexible panels differ in their allowable bending range, so the panel should be matched to the actual curved surface rather than selected by wattage alone.

Check Available Surface Area

Panel dimensions need to be considered together with rated power. For OEM projects, the required module size and electrical output should be confirmed together rather than specifying wattage alone.

Application of Flexible Solar Panel

Flexible solar panels are suited to applications where conventional framed modules may be difficult to position because of surface shape, available space or weight restrictions.

RV Solar Systems
Flexible panels can follow suitable curved RV roof surfaces while providing solar power for onboard battery systems and auxiliary loads.

Marine Solar Systems
They can be used for boat and yacht battery charging where deck or cabin space is limited and the mounting surface may not accommodate a conventional framed module.

Camping and Portable Power
Small 10W–30W configurations can be considered for compact portable power setups where module size and carrying weight are important.

Off-Grid Equipment
Flexible panels can be integrated into off-grid lighting, communication equipment, monitoring systems and other small DC power applications.

Flexible Solar Panel Customization Options

Electrical Specification

Rated power, operating voltage and current can be reviewed according to the target application. The final Vmp, Imp and other electrical values should be confirmed before production.

Module Dimensions

Module dimensions can be discussed according to available installation space and required output. Cell arrangement and power configuration need to be considered together.

Cable and Interface

Cable length, connector/interface and cable outlet configuration can be specified according to the buyer's wiring requirements.

OEM Labeling and Packaging

Product labels, company name, manuals and outer-box packaging can be incorporated into OEM orders according to the confirmed requirements.

How the Flexible Solar Panel Works

The photovoltaic working principle remains the same as other solar modules, while the module construction allows the cells to be packaged in a lighter and more flexible format.

Photovoltaic Cell Conversion

Solar cells convert sunlight into DC electricity. The resulting electrical output is determined by the cell type, number of cells and module configuration.

Cell Interconnection

Cells are electrically connected to obtain the required module voltage and current. Different configurations therefore produce different Vmp and Imp values.

Flexible Module Construction

Flexible modules use protective layers and a lighter construction instead of the conventional rigid glass-and-frame structure, allowing suitable models to conform to curved surfaces.

DC System Connection

The module output can be connected to a compatible charge controller, battery system or other DC equipment after checking voltage, current and polarity.

Safety Precautions When Using the Flexible Solar Panel

Proper handling is important during transportation, storage and installation to prevent mechanical damage to the cells and electrical connections.

Avoid Excessive Bending
Do not fold or bend the panel beyond its permitted mechanical condition. Excessive bending can damage the cells and affect electrical output.

Do Not Lift by Cables
Lift the module from its main body rather than the junction box or wires. Pulling the cables can damage the connection points.

Inspect Before Installation
Check for cracks, dents, deformation and other visible damage after unpacking. Connector contacts should remain clean, dry and free from corrosion.

Avoid Standing or Twisting
Do not stand or walk on the panel, apply concentrated loads or twist the module during handling and installation.

Installation of The Flexible Solar Panel

Installation should follow the construction of the selected panel and the characteristics of the mounting surface.

Prepare the Surface

Clean and inspect the installation area before fixing the panel. Remove sharp edges or projections that could damage the module.

Confirm Position and Cable Route

Position the panel and plan cable routing before fixing. This is particularly important on confined RV roofs, boats and equipment surfaces.

Prevent Mechanical Stress

Do not stretch, fold or twist the panel during installation. The mounting method should avoid concentrated pressure on the cells.

Check Electrical Polarity

Confirm positive and negative polarity before connecting the panel to the charge controller or battery system. Use the appropriate protection required by the system design.

Flexible Solar Panel Warranty & Technical Support

Warranty coverage and factory technical resources provide buyers with information for evaluating long-term supply and OEM projects.

Production and Testing Equipment
Factory equipment includes automatic cutting machines, welding machines, laminating presses, EL testers and component power testing equipment for production and inspection.

Technical and R&D Team
The company has 50 employees, including 15 non-front-line staff and 4 R&D personnel, supporting product development and OEM specification review.

5-Year Product Warranty
A 5-year product warranty is available for the solar products, with the applicable scope and conditions confirmed according to the final product and order.

25-Year Power Warranty
The stated power warranty is 25 years with 80% power retention, subject to the applicable warranty terms.

FAQ

Q: What is the minimum order quantity (MOQ) for custom OEM orders?

A: MOQ varies based on customization requirements such as non-standard dimensions or private labeling. Contact our sales team with your project details for specific quantities.

Q: What is the standard production lead time?

A: Standard production takes 20 to 35 days after final technical and artwork confirmation, depending on order volume and scheduling.

Q: What payment terms are accepted?

A: We typically accept T/T payments with a deposit upon order confirmation and the balance prior to shipment. Specific terms are negotiable for large orders.

Q: Can I request pre-production samples for testing?

A: Yes, prototype samples can be manufactured according to your specifications to evaluate physical flexibility and power output before bulk production.

Q: Can different flexible panel models be combined in one order?

A: Yes, mixed models can be included when the required quantities and production schedule are confirmed before ordering.

Q: How are panels tested before shipment?

A: Every unit undergoes automated EL (Electroluminescence) testing for hidden micro-cracks and flash testing to verify rated electrical output.

Q: Can cable lengths and connectors be customized?

A: Yes, wire gauges, lengths, and terminal connectors can be customized to match your system integration requirements.

As one of the most professional flexible solar panel suppliers in China, our products have good reputation in the market. Please rest assured to buy bulk premium flexible solar panel in stock here from our factory. For price consultation, contact us.
